product description:

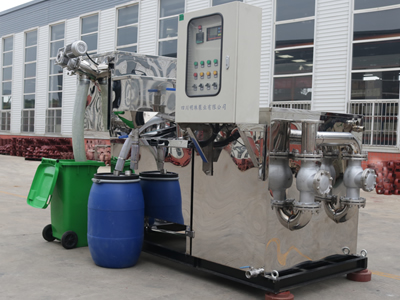

WT oil separation sewage lifting integrated equipment, sewage lifting device is suitable for hotels, kitchens, underground restaurants and non-staple food processing units. Separate and collect sundries, water and oil. It is widely used in places with high requirements for oil and water separation precision and environmental protection.

With simple structure and stable use, it is favored by the catering industry such as large and medium-sized star hotels, office buildings, tourist resorts and food courts, and has become a new environmentally friendly product that replaces ordinary grease traps.





Equipment principle:

The main entrance of the equipment is connected to the slop oil-water main pipe. Waste water can enter the oil separation lifting equipment in two ways. The sundries in the waste water are separated in the slag removal device. The waste water and grease enter the oil-water separation bin. The water level rises to a certain position, and the oil-water density is used. The difference principle collects grease in the slick oil collection area, and drains the oil to the waste oil collection barrel through the oil drain valve. The separated waste water in the oil-water separation bin flows into the water storage tank under the action of hydraulic pressure. When the water level in the water storage tank reaches a certain position At the time, the water pump discharges the waste water and the sundries stored in the solid-liquid separation device together.





Function Description:

1. The automatic filtering and slag removal device is adopted to automatically separate the debris from the waste water to ensure that the debris cannot enter the oil-water separation zone, and achieve the automatic slag discharge function, without any manual cleaning and maintenance;

2. The unique backwashing device can effectively flush the oily attachments of the slag removal device at any time to ensure that the slag removal device is kept clean and free of sediment precipitation and adhesion;

3. Multi-point fully guaranteed control system design, real-time liquid level display, to ensure safe and accurate operation of the equipment;

4. Adopt air flotation device to accelerate oil-water separation time, reduce equipment area and save land cost:

5. The automatic heating device is adopted to prevent the slick oil from hardening and affecting the efficiency of oil separation, and it can collect waste oil more effectively;

6. The automatic collection of floating oil and the hydraulic self-flowing structure are adopted, and the collection and operation of waste oil are convenient;

7. The universal oil guide is used to change the water flow channel, slow down the water flow speed, and improve the efficiency of oil separation;

8. It adopts all stainless steel material, the overall structure is compact, beautiful, reasonable layout, small footprint, convenient installation and maintenance.





Troubleshooting:
