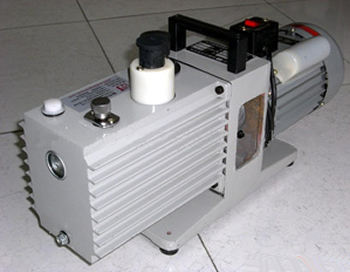

2XZ type rotary vane vacuum pump
2XZ two-stage rotary vane vacuum pump is made of ferrous metal and aluminum alloy, which is a more precise equipment. The main working parts of the vacuum pump are immersed in special vacuum pump oil to operate. Therefore, it is not suitable for the extraction of excessively high oxygen, toxic and explosive substances. Gas that chemically reacts to the vacuum pump oil or corrosive to ferrous metals, not to be used as a compressor or transfer pump
The 2XZ series two-stage rotary vane vacuum pump is a two-stage direct-connected structure. Its working performance is composed of high-pressure stage and low-pressure stage. Its suction port is connected with vacuum equipment, and a large amount of gas in the container is sucked and discharged during operation. When the equipment is vacuumed, the high-pressure exhaust valve is closed, and the gas sucked in by the high-pressure stage will be transferred to the second stage and discharged through the second stage. The vacuum equipment can obtain a certain degree of vacuum. The technical parameters of the pump are The 6×10-2 pump is connected to the motor shaft, high speed, small appearance, compact structure, and easy to work with fluidity. Our factory uses metal scrapers, which are suitable for the front pump of the diffusion pump, and are matched with precision. Laboratory , Medicine, food packaging, electronics, electric light source and other units.
Features:
2XZ two-stage rotary vane vacuum pump is made of ferrous metal and aluminum alloy, which is a more precise equipment. The main working parts of the vacuum pump are immersed in special vacuum pump oil to operate. Therefore, it is not suitable for the extraction of excessively high oxygen, toxic and explosive substances. Gases that chemically react with vacuum pump oil or corrosive to ferrous metals cannot be used as compressors and transfer pumps.
Product use of two-stage rotary vane vacuum pump:
Two-stage rotary vane vacuum pumps are used in refrigeration, electronic light bulb industries, printing, pharmaceuticals, food packaging, medical treatment, instruments, chemicals, semiconductors, electric vacuum, gas analysis, physical and chemical experiments, etc.
Model meaning:
Two-stage rotary vane vacuum pumps such as:
2XZ8
2- means two-stage pump
X-represents rotary vane vacuum pump
Z- means pump and motor coupling
8- represents the pumping rate per second
Performance parameters:
|
型號 名稱
|
2XZ-0.5 |
2XZ-1 |
2XZ-2 |
2XZ-4 |
2XZ-8 |
2XZ-15 |
|
抽氣速率（L/S） |
0.5 |
1 |
2 |
4 |
8 |
15 |
|
極限壓力≤(Pa) |
6.0×10-2 |
6.0×10-2 |
6.0×10-2 |
6.0×10-2 |
6.0×10-2 |
6.0×10-2 |
|
轉速（rpm） |
1440 |
1440 |
1440 |
1440 |
1410 |
1420 |
|
電機功率(kw) |
0.18 |
0.25 |
0.37 |
0.55 |
1.1 |
2.2 |
|
吸氣口徑（mm） |
16 |
16 |
25 |
25 |
40 |
40 |
